Impact Press

These Impact Presses are different from the conventional Fly Presses and Arbour Presses. The Impact Press Machine is a press in which the actual impact which acts on the job does not depend on the pressure exerted by the operator while actuating the lever. The mechanical advantage ratio achieved is more than 175.. So, however lightly you pull the handle lever, the pressure that you get on the job is consistent. This leads to instant forming of the job as per your requirement and a uniform finish. These impact press machines are IDEAL FOR QUICK RIVETING, NUMBERING, BENDING, FLARING, EMBOSSING, PUNCHING, SHEARING, STAMPING, BUTTON-FIXING, HOT-STAMPING AND A HOST OF OTHER ASSEMBLY WORK OPERATIONS.

ELLORA IMPACT PRESSES OPERATE AT A SPEED OF TWO STROKES PER SECOND & HENCE ARE IDEAL FOR ASSEMBLY LINE OPERATIONS.

App

In case of the PNEUMATIC MODE, both hands of the operator remain free for feeding the job into the press, thus enhancing his/her productivity further. Moreover, the pneumatic model can be operated manually as well. So, in case of power failure, your factory’s production is not hampered.

You can also adjust the striking pressure as per your requirement up to a maximum of: -

1.1 TON IN CASE OF I.P.- 1100
3.5 TON IN CASE OF I.P.- 3500

BRIEF TECHNICAL SPECIFICATION I.P.- 1100
HAND OPERATED
I.P.- 1100
PNEUMATIC
I.P.- 3500
HAND
OPERATED
I.P.- 3500
PNEUMATIC
Maximum adjustable Striking Load 1.1 ton 1.1 ton 3.5 ton 3.5 ton
Total Height of Column 600 mm 800 mm 1100 mm 1100 mm
Diameter of Column 36 mm 36 mm 60 mm 60 mm
Working surface base 200 X 160 mm 200 X 160 mm 260 X 220 mm 260 X 220 mm
Throat Centre distance 141 mm 141 mm 198 mm 198 mm
Maximum distance between punch & base 285 mm 285 mm 610 mm 310 mm
Collet Bore 10 mm 10 mm 14 mm 14 mm
Maximum thickness that can be Punched
a) M. S.
b) Brass, Aluminium, Copper
20 S.W.G.
18 S.W.G.
20 S.W.G.
18 S.W.G.
16 S.W.G.
14 S.W.G.
16 S.W.G.
14 S.W.G.

DISTANCE BETWEEN PUNCH AND SURFACE OF THE JOB SHOULD BE KEPT BETWEEN:

3 MM TO 20 MM FOR I.P. 1100 & MM TO 25 MM FOR I.P.- 3500

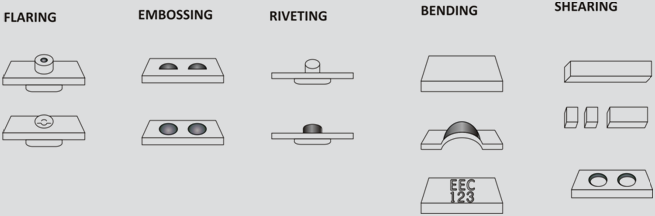

ILLUSTRATION OF A FEW THE APPLICATIONS OF ELLORA IMPACT PRESS
